FD100 Furniture Actuator


  • Low voltage DC motor 24V-29V
  • Load capacity of 500-1000N
  • Speed from 4mm to 42mm/s
  • Stroke of 500mm max
  • Minimum retracted installation length is 140mm+stroke
  • Working frequency by on 2 min/off 8 min
  • Controlled by limit switch with the tolerance by±2mm
  • Apply to recliner, functionallifting chair headset rest

FD100 is one short stroke linear actuator for recliner chair headset rest adjustment. With handset, switch, power supply accessory, PJMTEC can offer a good solution of smart and comfortable function sofa. Competitive price, short time delivery, custom made service for furniture industry are our advantages.

Power Supply

Input voltage is AC100-240V 50/60 Hz

Output is DC 29V 1.5A

Plug option can be US, JP, UK, EURO, AUS plugs

Mounting bracket as one option

Get a Quote

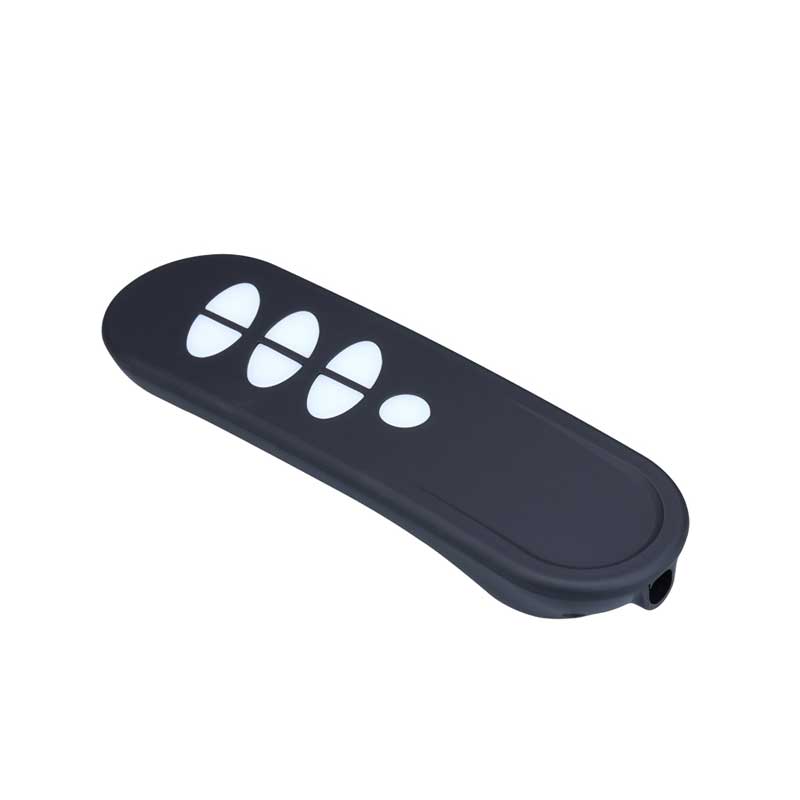

Handset with wire

Control 2-3 linear actuators

Home button function available

2-8 button type can be made

Get a Quote

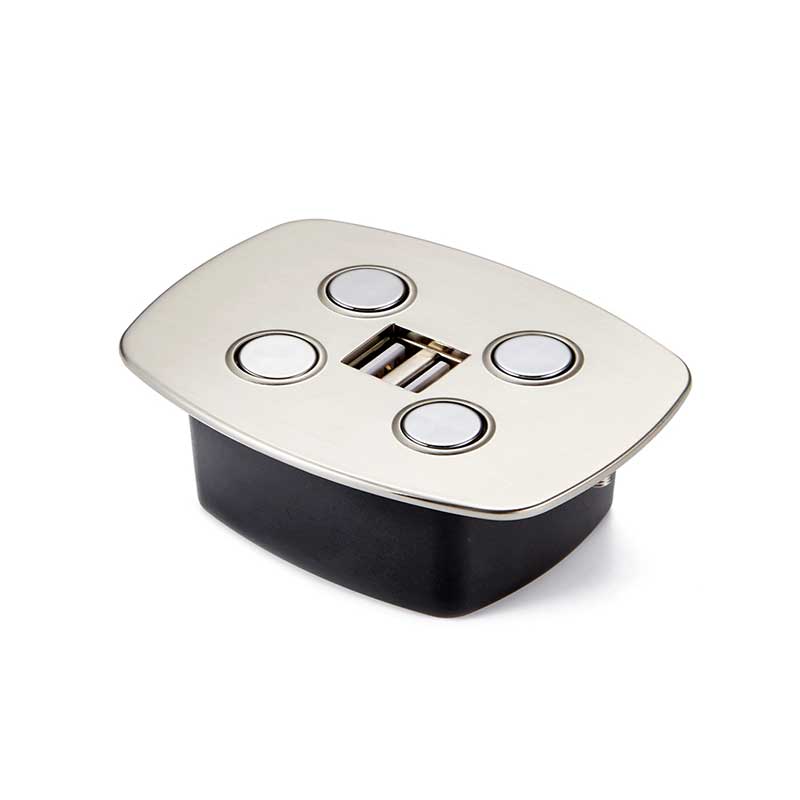

Control 1-2 linear actuators

A USB port for charging mobile phone device with 1A output

2 button or 4 button available

More switch panels option or tailor-made
