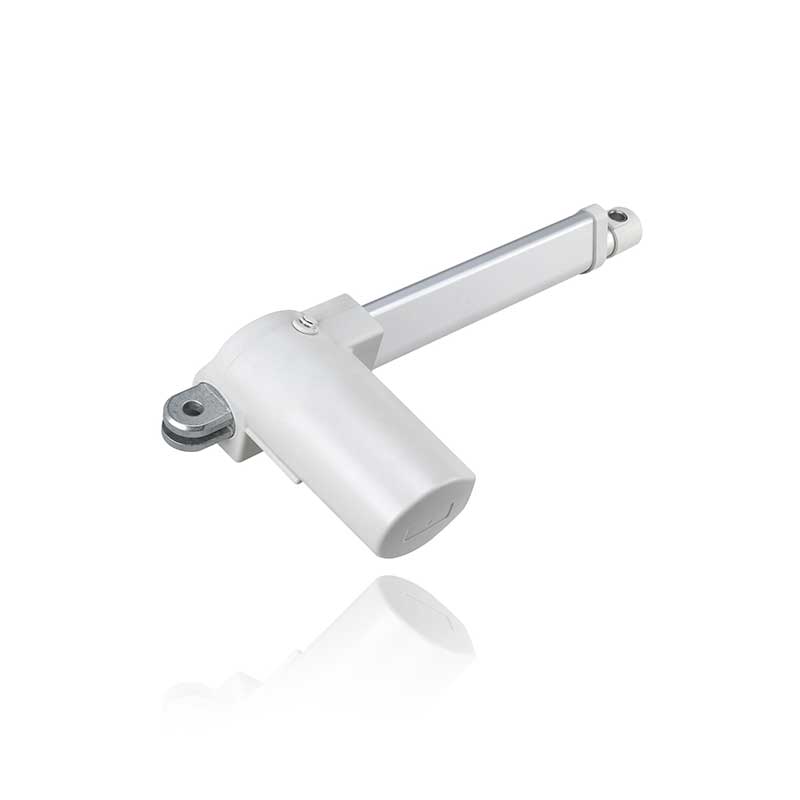

MD40 basic hospital bed actuator

Features:

  • Max load: 4000N
  • Speed range: 4-30mm/s
  • Minimum retracted length: stroke+160mm
  • IP rating: IP66
  • Stroke: 50-600mm
  • Hall sensor feedback option
  • Voltage: 24V
  • Noise level less than 48dB
  • Silver white color

MD40 series actuators with handset, control box are designed for basic medical bed systems. Support basic hospital bed motion control. This is a economic solution for bed adjustment. Powerful motor but silent working. Highly tailor-made service. High quality service.

Handset

Max 6 buttons

Support 1-2 linear actuators operation

Silver white color

Supporting medical care control box type

Basic up and down function

Get a Quote

Control Box

24V input

4 actuators plug, 1 hand set plug, 1 power supply plug, 1 urgent switch plug

20,000 cycles life time with overheat protection

Synchronous drive operation with no feedback

Get a Quote
