MD80 intelligent hospital bed actuator


  • Max load: 8000N
  • Speed range: 4-25mm/s
  • Minimum retracted length: stroke+160mm
  • IP rating: IP66
  • Stroke: 50-600mm
  • Two Hall sensor feedback option
  • Voltage: 24V
  • Noise level less than 48dB
  • Silver white color

MD80 series actuators with handset, control box are designed for high-end medical bed systems. Support more intelligent operation and more accessories. Powerful motor but silent working. Highly tailor-made service. High quality service.


Max 10 buttons

Drive up to 5 linear actuators operation

Silver white color

Supporting medical care control box type

More function can be customized

Get a Quote

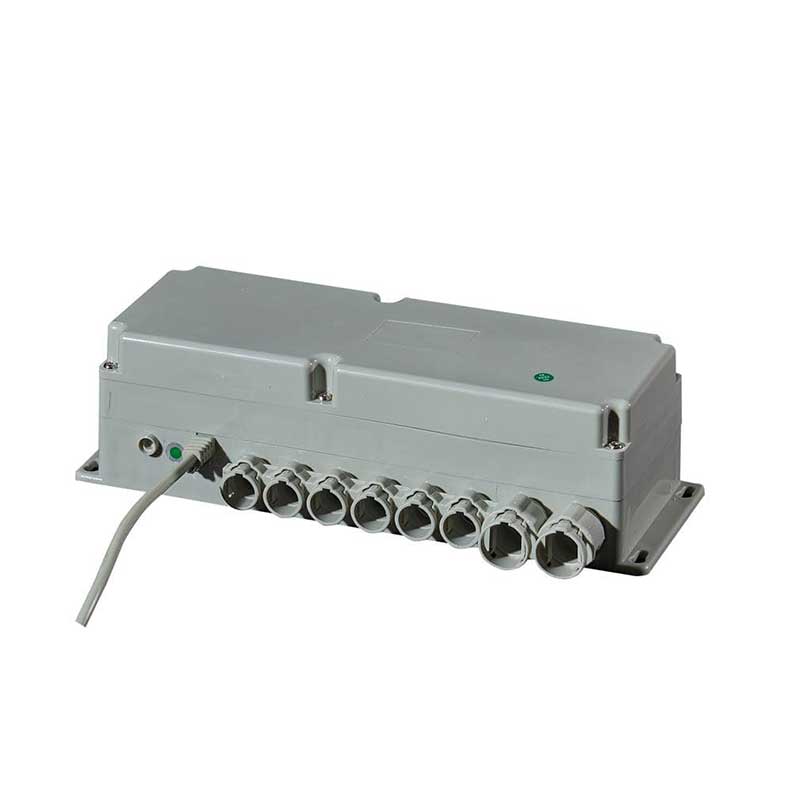

Control Box

24V input

5 actuators plug, 1 hand set plug, 1 power supply plug, 1 urgent switch plug

20,000 cycles life time with overheat protection

Synchronous drive operation with no feedback
