Solar Tracking Slewing Drive


  • Gear Ratio Option: from 60:1 to 154:1
  • Size: 3”, 5”, 7”, 9”, 12”, 14”, 17”, 21”, 25”, 32”
  • Output Torque:1.2 kN.m – 32 kN.m
  • Tilting Moment: 1.1 kN.m – 347 kN.m
  • Holding Torque: 2.2 kN.m – 190 kN.m
  • Mechanical Efficiency: 30%
  • Precision: less than 0.2 °
  • IP65 Protection Class

There are 2 main type slewing drives used for solar tracker: Enclosed Slewing Drive and Vertically-Mounted Slewing Drive. Slewing drive for solar tracking system application include Concentrator Solar Dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic heating collecting systems, single axis solar tracker and dual axis solar tracker.

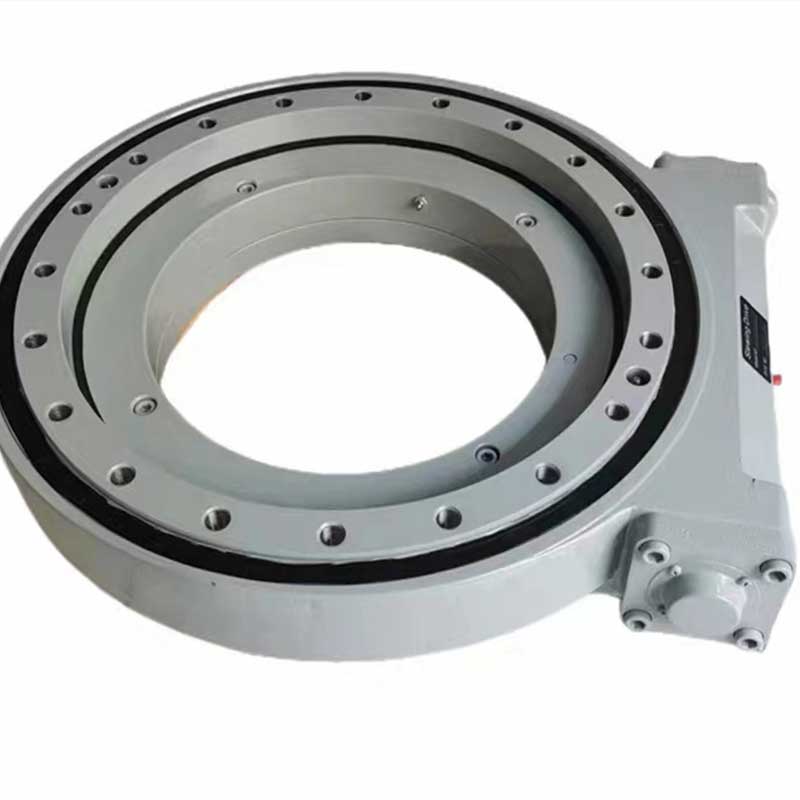

Enclosed Slewing Drive Series

One worm shaft or two worm shaft option. Low speed and high torque performance. SE series size from 3” to 32” suited for different solar tracker size request. Can be connected with dc motor or planetary gear motor.

Get a Quote

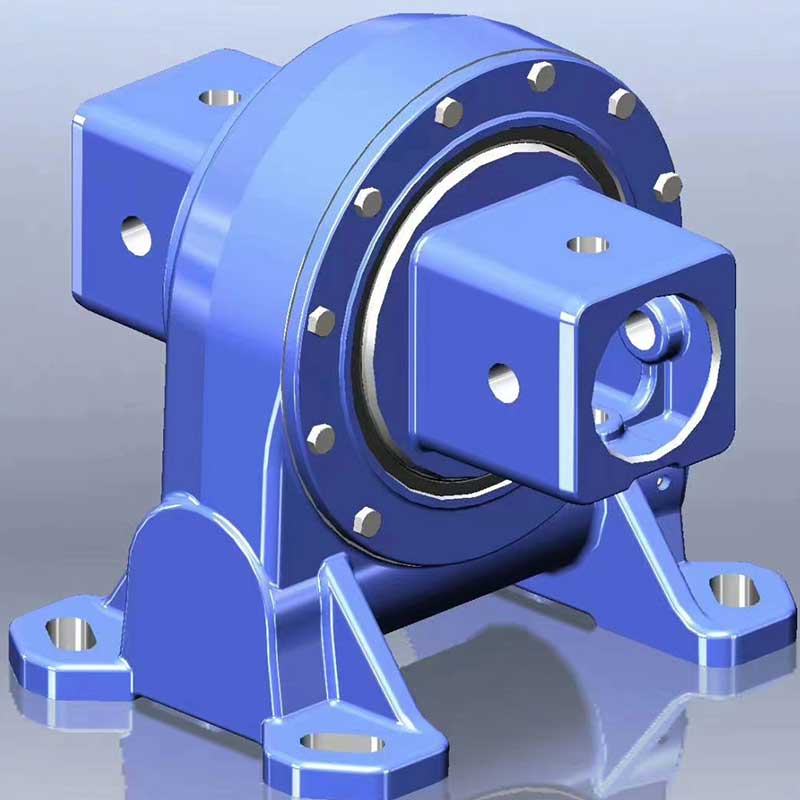

Vertically-Mounted Slewing Drive

VH series slewing dive size from 3” to 14”. These are more popular in solar power plant installation. They can be mounted with SE series slewing drive for 2 motor drive. More custom-made design is available.

Get a Quote
