IA6000 solar tracking actuator

Features:

  • 24V dc brush motor of 5000 hours design
  • Dynamic force(Push and Pull): 60000N
  • Static load 150000N
  • Stroke: 100mm-1600mm
  • No load speed by 1.25mm/s with less than 1.5A current
  • Working temperature: -40℃- 65℃
  • High protection degree with IP66
  • Build-in limit switch and self-locking performance
  • Cable, actuator housing, lubrication, gears for 20 years life design

IA6000 is super heavy duty industrial degree linear actuator for PV, CPV and parabolic through tracking project. Using special carbon brush and brand bearing realize the motor low cost but long life time. BLDC motor or stepper motor matched with ball screw shaft and double hall sensor is another option for precision and position control. Rich experience of gears, spindle, nut assembly make the actuator working smoothly all the time.

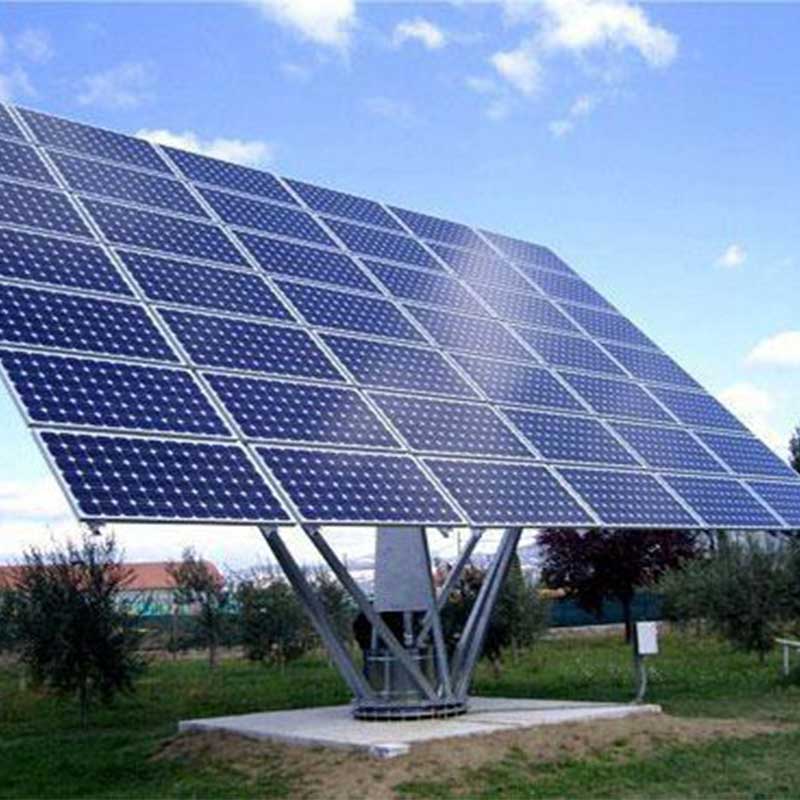

60kN Force Linear Drive Solution for PV, CPV and CSP

IA6000 is super heavy duty solar tracking actuator. It can bed used for solar panel of horizontal tracking and azimuth tracking. Suited for single tracking systems in photovoltaic solar power plant. It also suite for dual-axis solar tracker together with slewing drive in solar thermal power plant.  Reliable and accurate linear drive solution.

Get a Quote

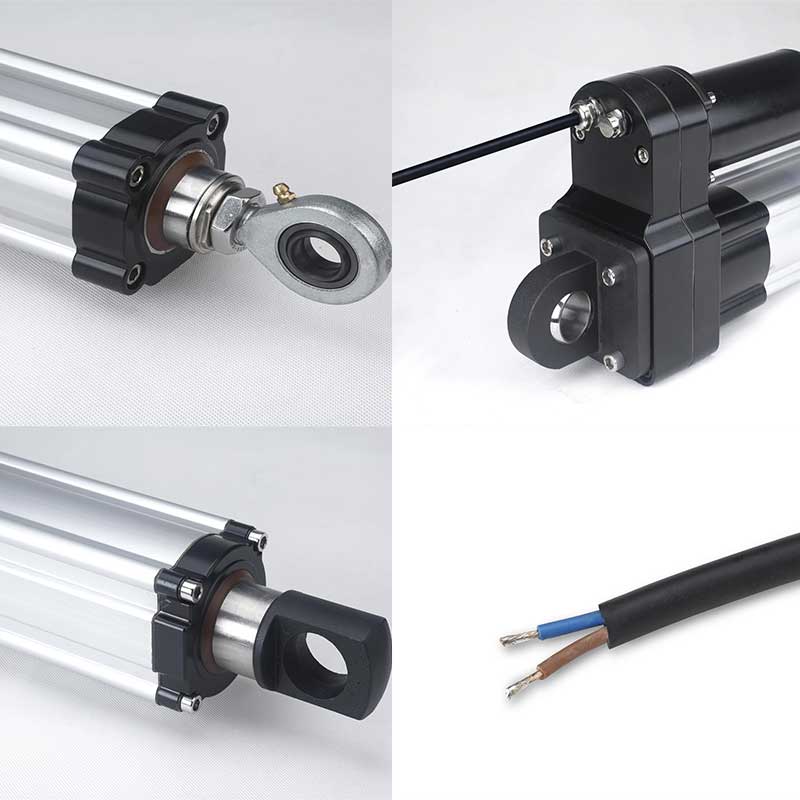

Gears housing, Front Rod,Rear Attachment and Cables Details
